The Steyr M95 is a straight-pull bolt action rifle designed by the Austrian engineer Ferdinand Karl Adolf Josef Mannlicher before the First World War. That rifle (aka the Mannlicher M1895 et al) served in vast numbers…but it kind of sucked.

World War I represented a tumultuous time in world history. Ancient empires struggled to remain relevant and vassal states that composed those empires were yearning for self-rule. Military forces were armed with a hodgepodge of rifles, machine guns, swords, pikes, revolvers, and semiautomatic pistols. The cavalry still charged on horseback in some corners of the globe while poison gas rained down on others…

None of which should excuse the designers of the M1895. Quite the contrary.

Regardless, off of these battlefields (where to be fair, they killed a lot of people) came the Steyr Mannlicher M1895 rifle.

The Mannlicher M1895 was designed by Ferdinand Ritter von Mannlicher.

The Steyr M95 rifle was an updated version of the previous Mannlicher 1890 carbine.

The Steyr M1895 was a straight pull bolt action rifle designed by Ferdinand Ritter von Mannlicher. The weapon was loaded using an en-bloc clip instead of a stripper clip.

The Steyr M1895 was a straight-pull bolt action rifle designed by Ferdinand Ritter von Mannlicher. The weapon was loaded using an en-bloc clip instead of a stripper clip.

Specs

  • Barrel Length: 30.1 inches (long rifle),
  • Overall Length: 50 inches (long rifle),
  • Capacity: 5 rounds
  • Cartridge: 8x50mmR, later 8x56mmR
  • Action: Straight-pull bolt action
  • Safety: Left-side striker block

Mannlicher M1895 (~Steyr M95)

The Mannlicher M1895 (Infanterie Repetier-Gewehr M.95) was designed by von Mannlicher to improve his original straight-pull action from the earlier Mannlicher M1890 carbine. This gave the M95 a higher rate of fire (30 to 35 rounds per minute) than a traditional rotating bolt action rifle.

We like to think of them as the poor man’s Schmidt-Rubin.

M1895 Mannlicher in the mountains

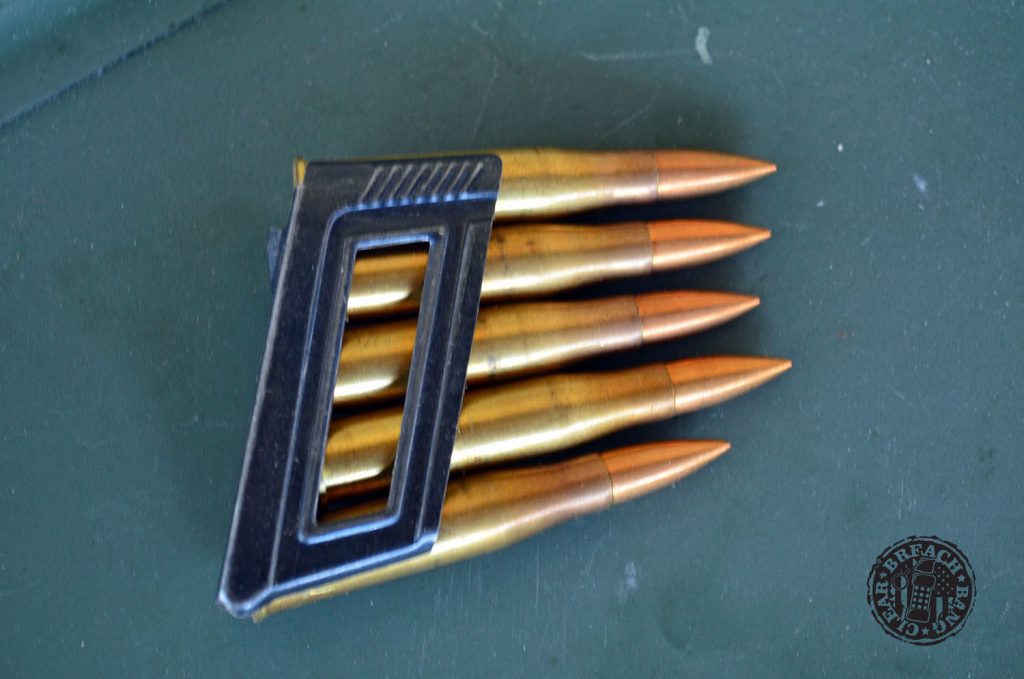

EnBloc Clip Design

Typical of a Mannlicher design, these rifles are fed via an en-bloc clip instead of a stripper clip.

An en-bloc clip holds the rounds within the clip, and it is inserted into the rifle from the top in the same manner as a magazine. When the last round is fired, the clip drops free through a hole in the lower receiver.

Think of the M1 Garand in reverse. Although if you have a loaded or partially loaded M95, you can push a button on the receiver and send a perfectly full clip of ammo sailing through the air if you feel the need.

Although fielded in the First World War by the Austro-Hungarian Empire, Bulgaria bought large quantities of them beginning in 1903. After the war ended and the Austro-Hungarian Empire was dissolved, the rifle continued to see use by the armies of Austria and Hungary but also in many of the Balkan states where the rifle was given to these countries as part of war reparations.

Over 3 million of the venerable bolt action rifles were ultimately manufactured, roughly 3/4 of them at Österreichische Waffenfabriks-Gesellschaft, Steyr. Most of the remainder were produced at Budapest’s Fegyver és Gépgyár Rt.

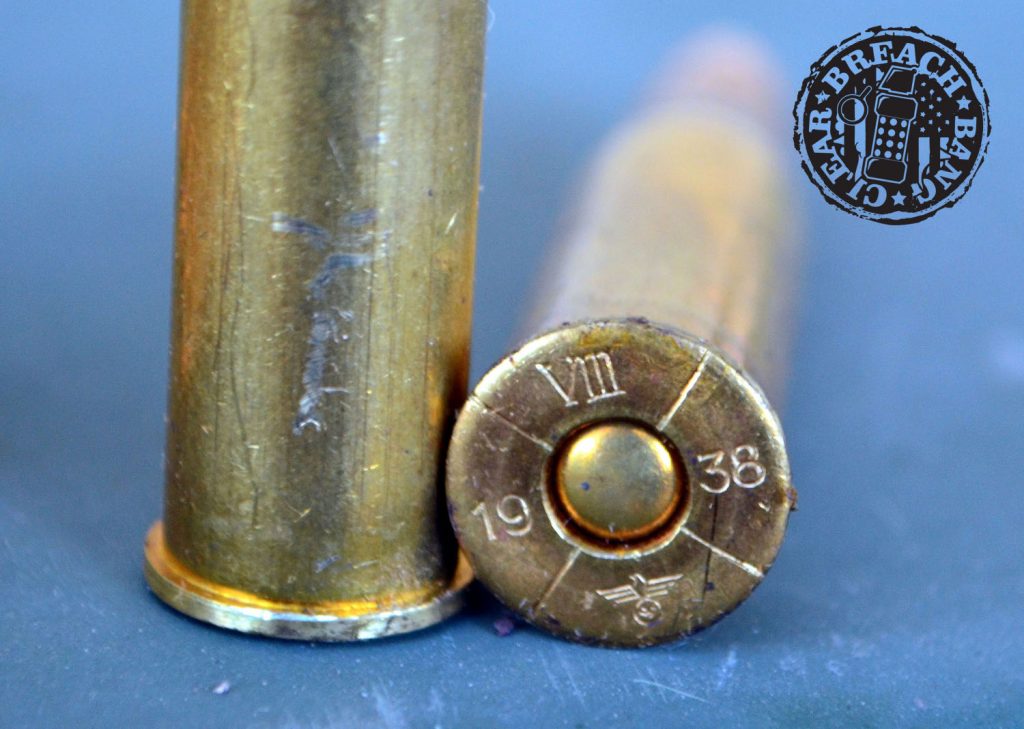

Steyr Männlicher: from 8x50mmR to 8x56mmR

Initially, these rifles were chambered in 8X50mmR. This round was the Austro-Hungarian Empire’s first step toward a smokeless powder round, as the powder used was considered “semi-smokeless”. So when the M95 came out, they used true smokeless powder in the loading and achieved 2035 fps with a 244-grain round-nosed bullet.

The Steyr M1895 was initially chambered in 8x50mmR but vast numbers were later re-chambered in 8x56mmR.

Some M95 rifles were later converted to 8×57 Mauser by the Germans for World War II. Shortly after the First World War, Austria and Hungary re-chambered the lion’s share of their rifles in the same cartridge as used in the Steyr-Solothurn light machine gun (MG-30, q.v.): 8X56mmR. To date no one we’re aware of has upgraded one to 6.5 Creedmore, but that’s probably just a matter of time.

The loading of the 8x56R round was similar but used a 210-grain conical or Spitzer bullet. Keep in mind that they did two things: they made a more powerful round while shortening the barrel.

3 decades after its introduction, many Steyr M95 rifles were rechambered in 8x56mmR, the same as the Steyr-Solothurn light machine gun.

Buy it and back the bang

Where to Find a Steyr M95 For Sale



Mannlicher M1895 series Sights

There was one other thing they did that makes us think that Hans and Klaus were very much asleep at the switch.

They changed the rear sight measurement from paces to meters.

Seems legit. Old action, new shorter barrel, and a more powerful smokeless round, why would you not change the sights?

That’s what I thought; from their perspective, it was 40 years ago when they were pacing toward the enemy in foppish uniforms with a five-foot-long rifle complete with a sword bayonet mounted on it. Now they were fielding something shorter and more powerful. Paces be gone! We need meters dammit!

Again, we go back to our arms engineers sleeping on fire watch.

When we picked up a Steyr M95 for the first time, there was a note on the side about how the rifle was hitting two feet high at 100 yards. It sounded like we had a shooter who was off to one end on some kind of spectrum so we took the Pepsi challenge and sure as hell, he was right.

Then we looked at the rear sight and shook our heads thinking of the legacy of those early 20th-century engineers whose descendants would produce the Glock, Steyr AUG, HK P7M8, and a plethora of other Teutonic goodness.

The sight’s lowest setting is 600 meters and goes up. Not exactly something a Jerry should have been toting in either of the World Wars if they wanted a tactical advantage, if you ask me. But they didn’t, so there’s that.

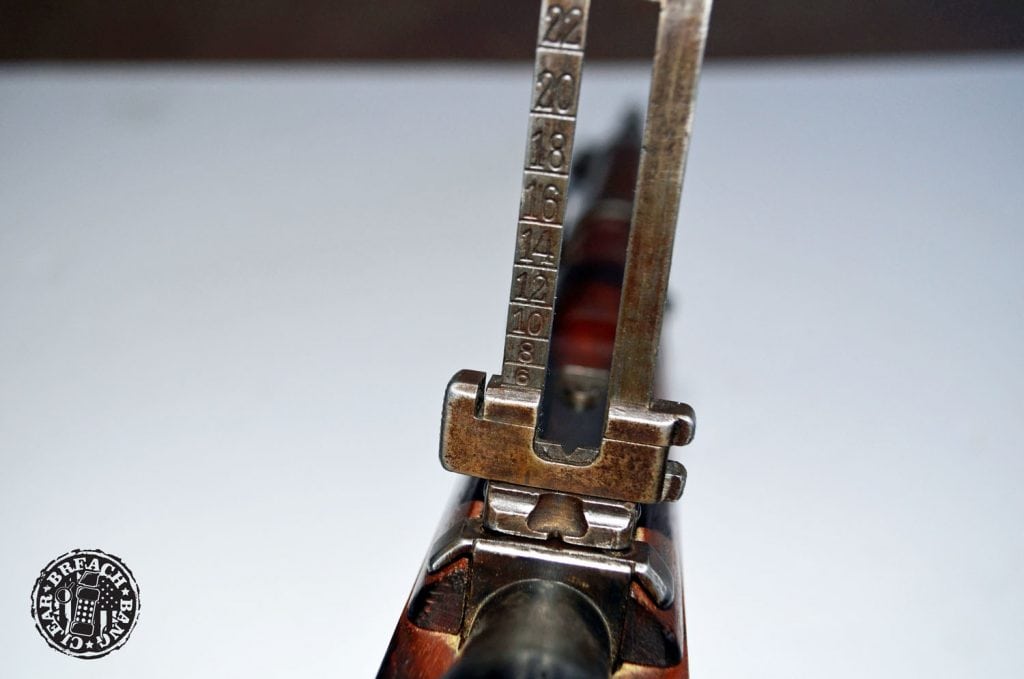

Mannlicher M1895 sights flipped up for use.

At one point they changed the Steyr M1895’s sights from paces to meters – unfortunately.

In our estimation, the sights are kind of on the small size for long-range, too. I guess they were preoccupied with new strains of mustard gas and rocketry experiments to really notice.

Still, we use our M95 to ring the same steel we do with our M1A and open sights. It’s not nearly as accurate, kicks like two rented mules, but dammit, we hit about eight times out of ten.

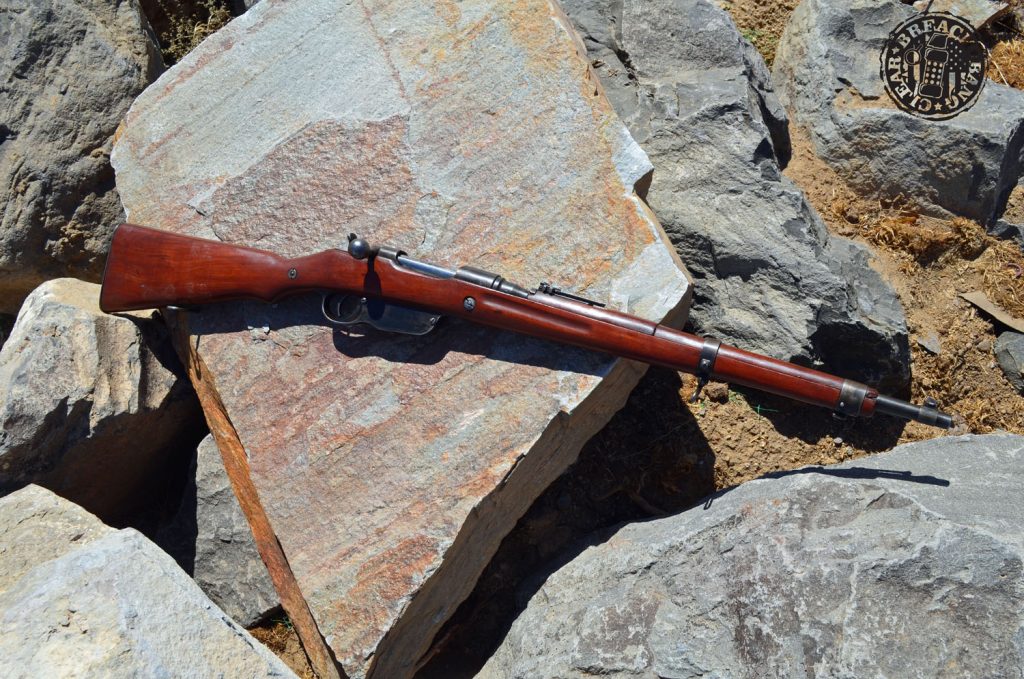

A Steyr M95 rifle displayed on a grey rock background.

You can find a more in-depth review on the Steyr M95 in a couple past issues of Legendary Arms, published by Inside Military Surplus. Check it out if you have some time.

The Mannlicher M1895s do represent a unique footnote in small arms development, especially in the realm of what not to do with sights.



Steyr M95 Addendum(s)

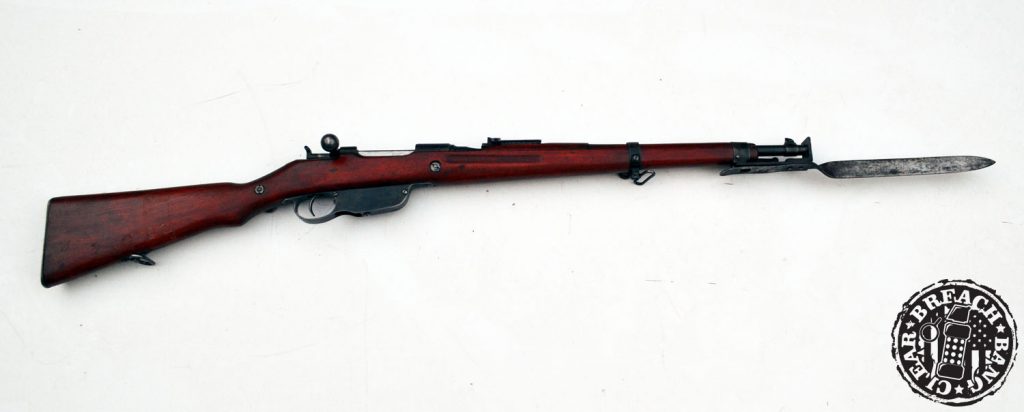

Steyr M95 straight pull bolt action rifle.

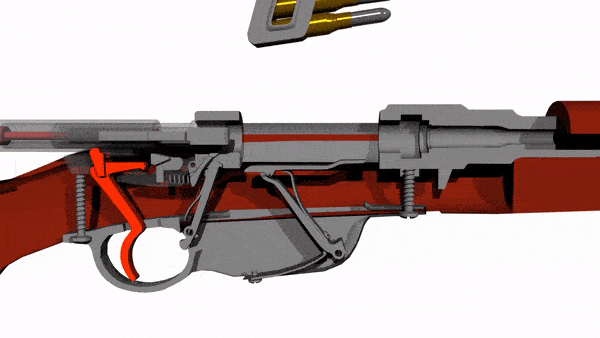

Steyr Mannlicher M95 bolt has a separate head with two frontal locking lugs; bolt head was inserted into the bolt body from the front. Bolt body had internal spiral-shaped ribs, with matching spiral-shaped cuts in the tail of the bolt head. These ribs and cuts forced the bolt head to rotate on the pull of the bolt body, locking and unlocking the action. Box magazine contained five rounds in en bloc clips; as the magazine emptied, the clips were ejected from the opening at the bottom of the magazine. Non-empty clips could be removed from the top with the bolt open, by depressing the clip catch inside the triggerguard. One specific feature of this system was that the clip has specific “top” and “bottom” sides, and could not be loaded into the rifle upside down. The safety was located at the rear left side of the bolt. Large ear-shaped cocking handle at the rear of the bolt served as a manual cocking handle, to re-cock the action without operating the bolt. M95 rifles were issued with detachable knife bayonets. Other than basic rifle, M95 also was issued as Stutzen (short rifle or carbine, with bayonet lug), and slightly shorter cavalry carbine (without bayonet lug). Modern Firearms.net



Steyr-Mannlicher M1895 Carbine: Smithsonian Style

The weapon, bearing serial number 3775V, is a carbine variant of the M1895 housed at the Smithsonian Institute’s National Museum of American History. It measures 40 inches long but they don’t have the weight listed. If you’d like to know more, check out catalog number 59595M.

Steyr Mannlicher M1895 Carbine at the Smithsonian

Steyr Mannlicher M1895 Carbine at the Smithsonian



Steyr Mannlicher M1895 Carbine at the Smithsonian



On Video

Of the many versions of M1895 rifles that saw combat, one of the more unusual was a conversion to semi-auto (yes, semi-auto).

Another is a sniper model carbine.

Looking to know more? Go balls-deep with C&R Arsenal (see below).



This article originally ran in November 2016.
